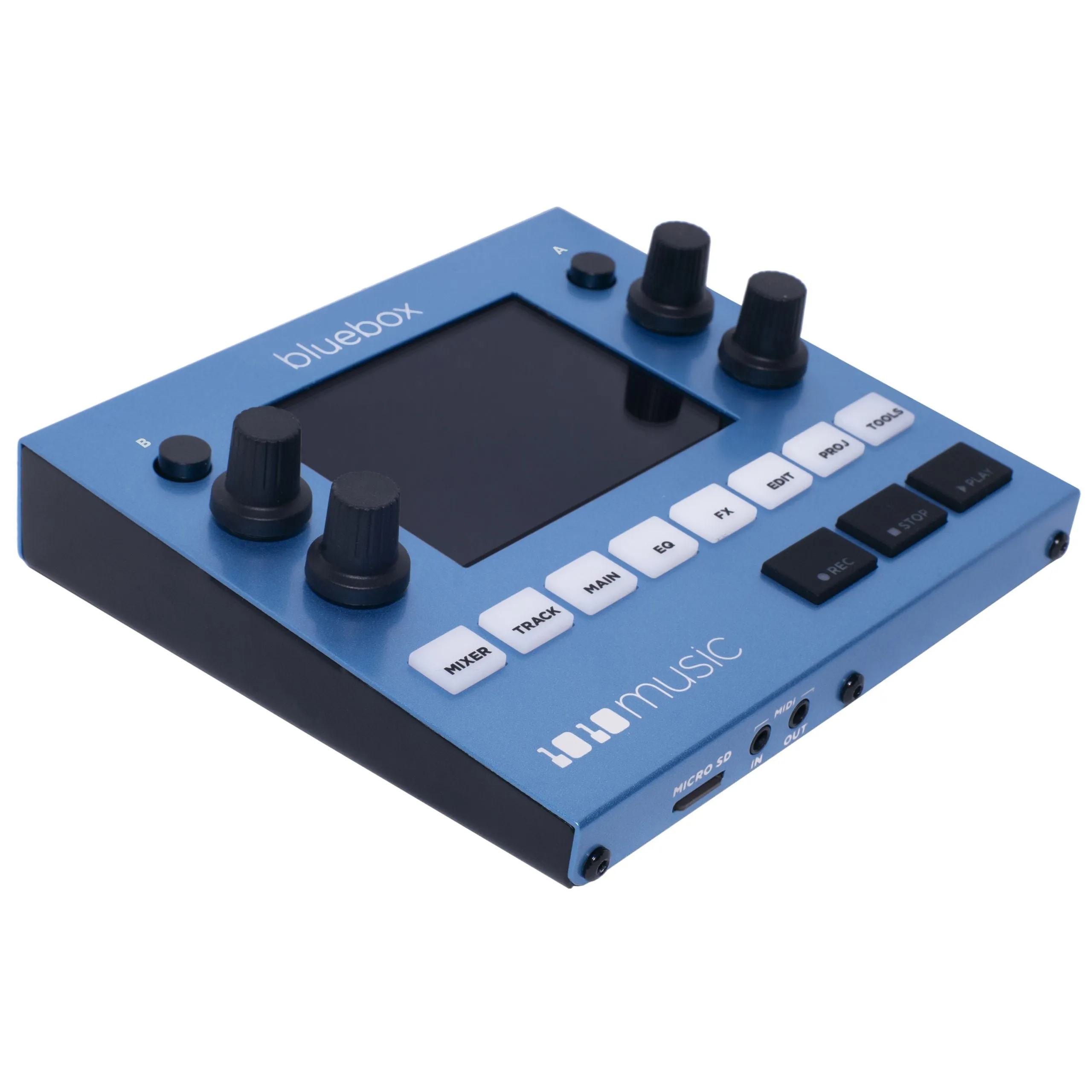

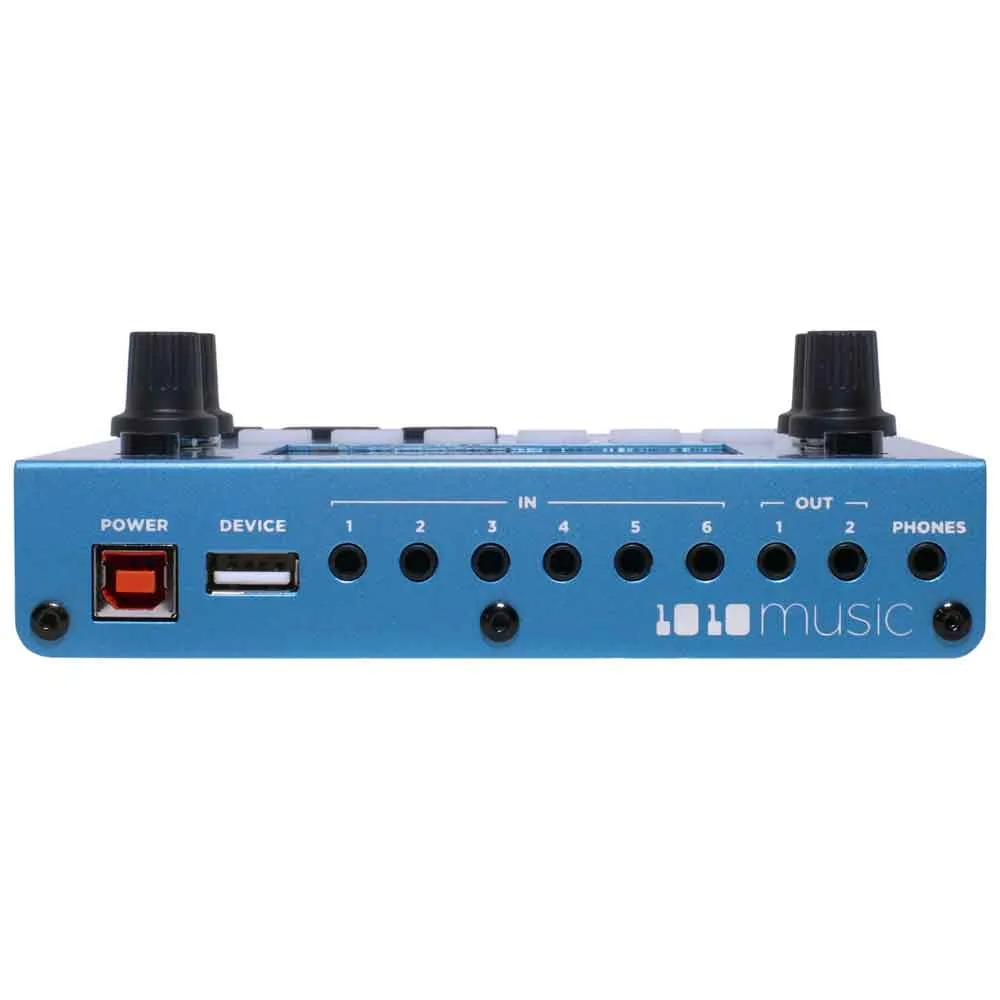

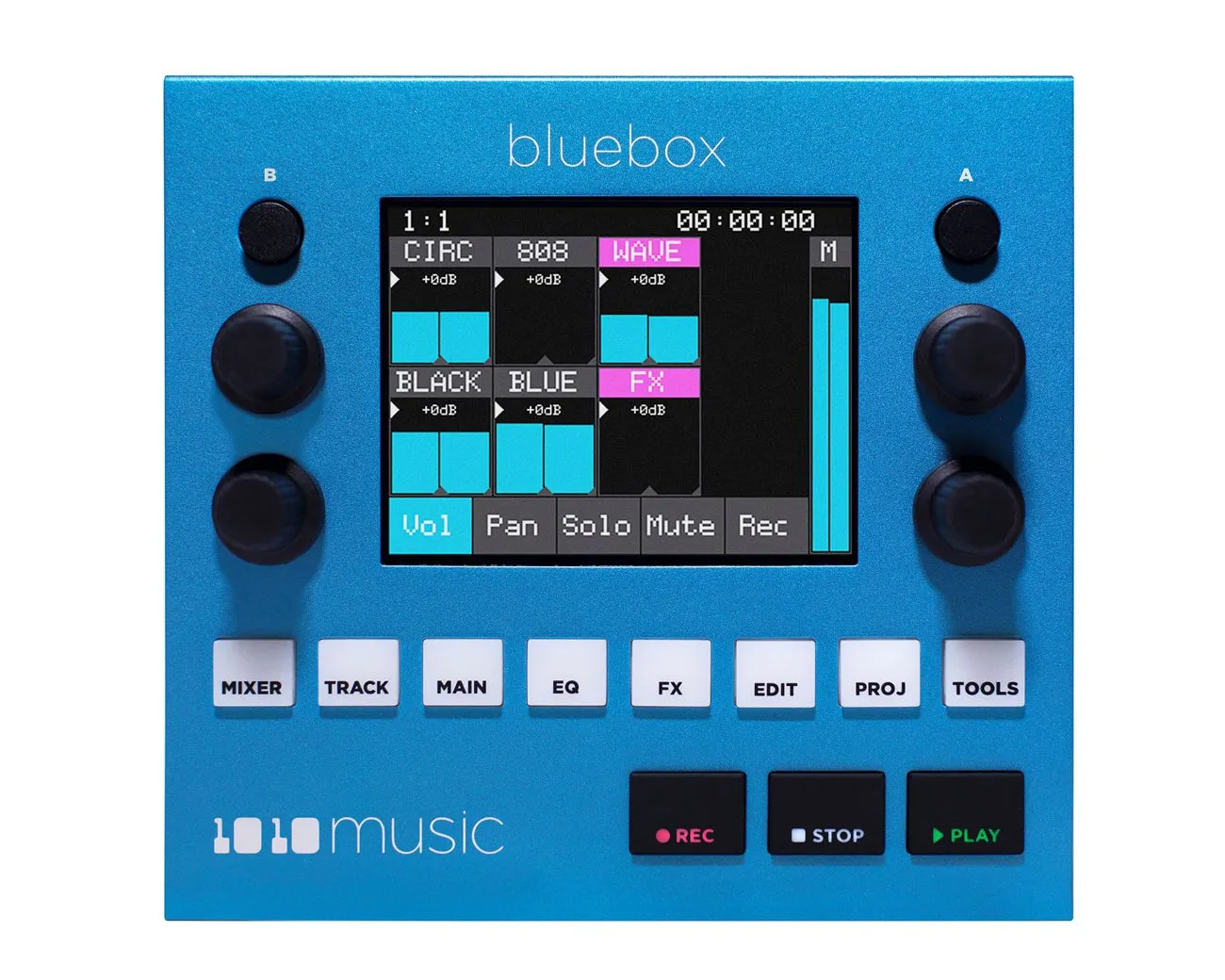

Bluebox is the portable digital audio mixer/session recorder with touchscreen that lets you get the most out of your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. It’s that keyboard mixer with live performance features that you always hoped someone would make.

Each track offers control of volume, gain, 4 band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4 band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

• Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix.
• Playback a previously recorded track while recording new ones.
• Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.

Included in the box:

• Bluebox digital recording mixer
• A microSD card with bluebox firmware and pre-loaded project files
• A USB power cable and AC adapter with 3 international adapters
• 2 MIDI Adapters – Male 3.5 mm TRS to Female 5 pin DIN, MIDI Class B standard
• 1 USB B Splitter cable – Connect the USB B power port of bluebox to USB B Power (red) and USB B Data (black)
• A Quick Start guide to show you the basics (full user manual available )

Video:

Product Specs

• Item Number: 16112
• Make:
• Model:
• Condition:
• Finish: Blue
• Categories: ⇒
• Function:
• Made In: China
• MPN: TEN-BLUEBOX
• UPC: 857665007154
• Modular Grid: Pedals
• Dimensions*: 140 mm wide 127 mm high
• Power*: 2000 mA / 5 V DC

* User contributed details
